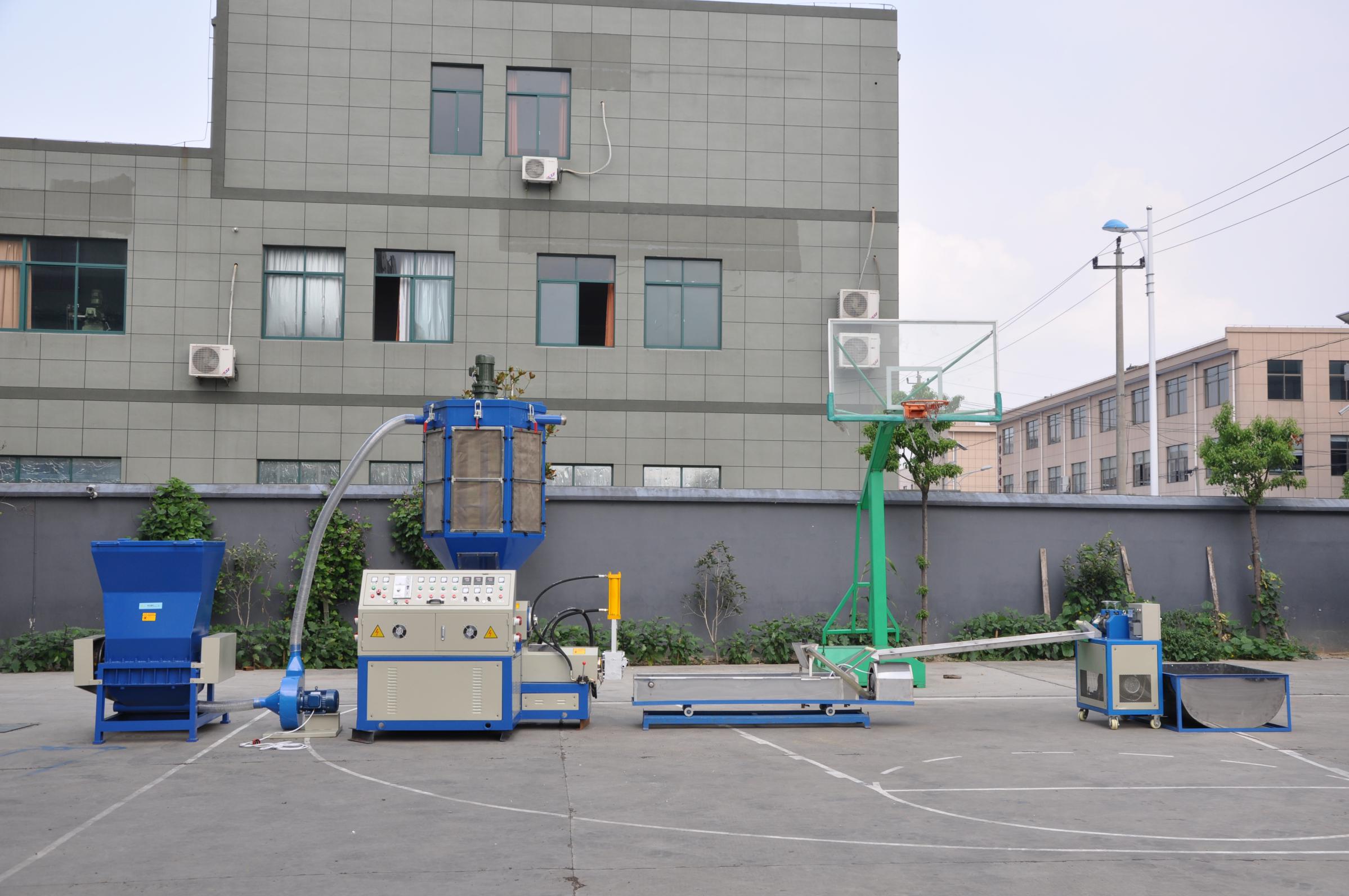

Type: PHS-250-125
Function: for / foam recycling pelletizing
380 V, 50HZ, 3 PH
one stage
1. Screw and barrel: made of 45# STEEL
(screw dia.Æ 250mm,long dia.ratio 250*295*1120mm )
2. Motor: 55kw-6p general motor
3. Mould: Round Mould head
4. Heat loop: Red ceramic
second stages
1. Gear box: ZLYJ146strong hard-teeth surface , made of top grade special alloy
2. Screw and barrel: made of 38CrMoAl , Nitriding treatment
(screw dia.Æ125mm,long dia.ratio 125*165*1000mm )
3. Motor: 15kw-4p electromagnetic adjustable speed motor
4. Mould: hydraulic Mould head,220*220mm
5. Heat loop: stainless steel cuprum
6. Water tank: stainless steel with blower
7. Granule cutter : Æ140*140 , 4KW-4P electromagnetic adjustable speed motor
9. Collection hopper: stainless steel
Output ： 200-250kg/h
